10μL Minimum Volume
General InfoTechnical ResourcesRequest A Sample

Offers a very low dead volume, allowing one to filter as little as 10μL of sample with enough remaining filtrate to make a 2μL injection

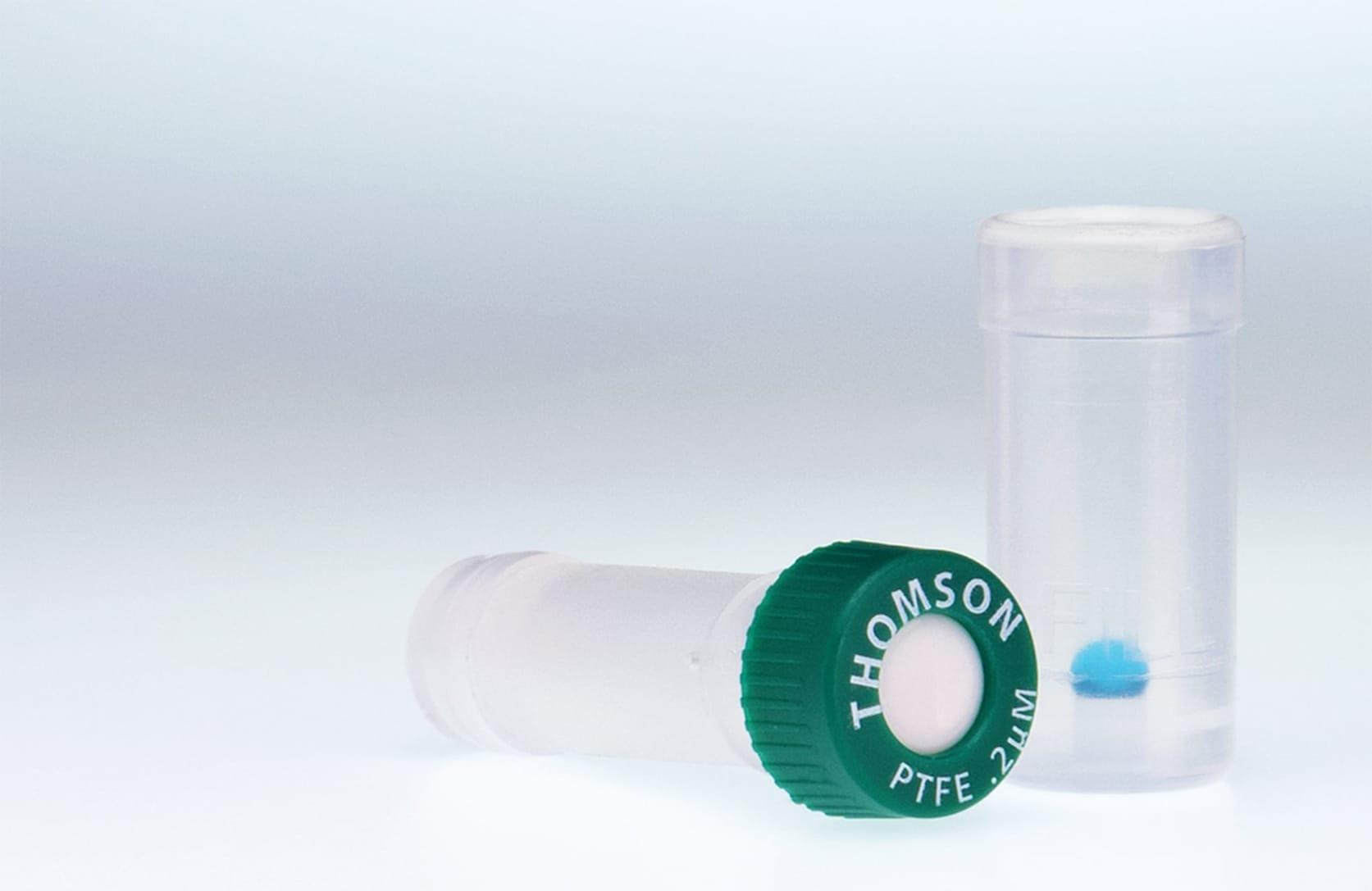

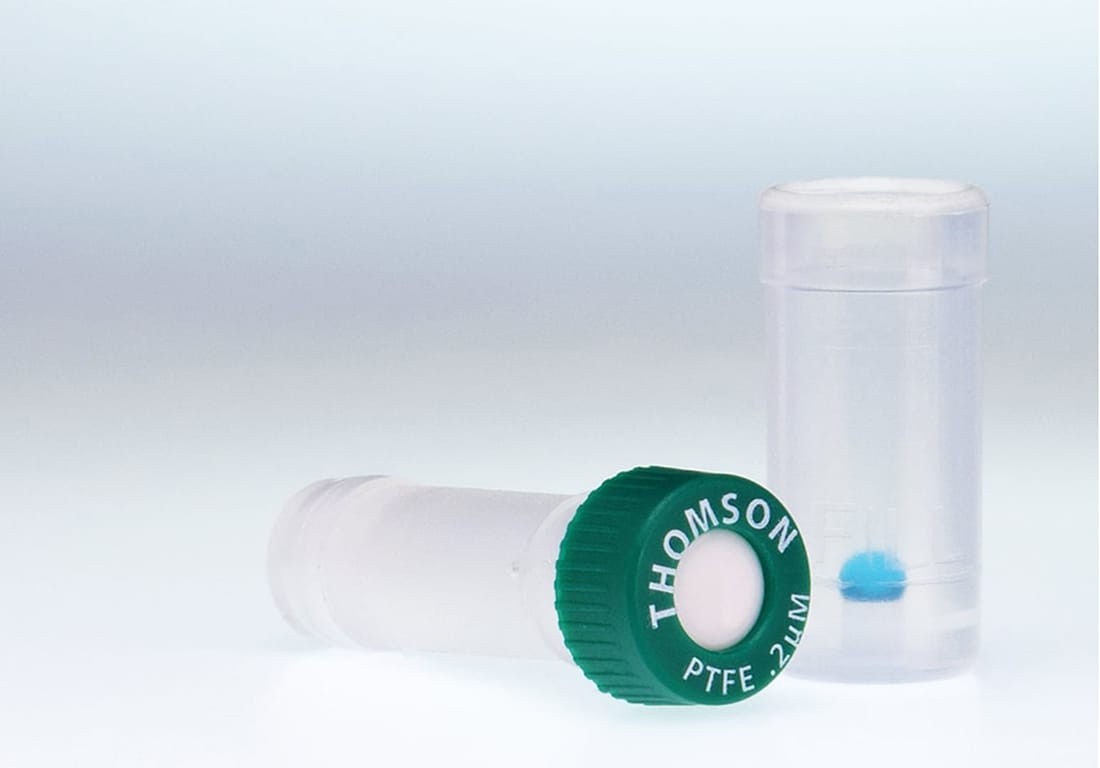

hero-nano

10μL Minimum Volume

very low dead volume

Thomson nano|Filter Vial® offer a very low dead volume, allowing one to filter as little as 10μL of sample with enough remaining filtrate to make a 2μL injection.

Applications include all low volume samples: analysis of enzymes, peptides, DNA, RNA, synthesis reaction intermediates, finished products, saliva.

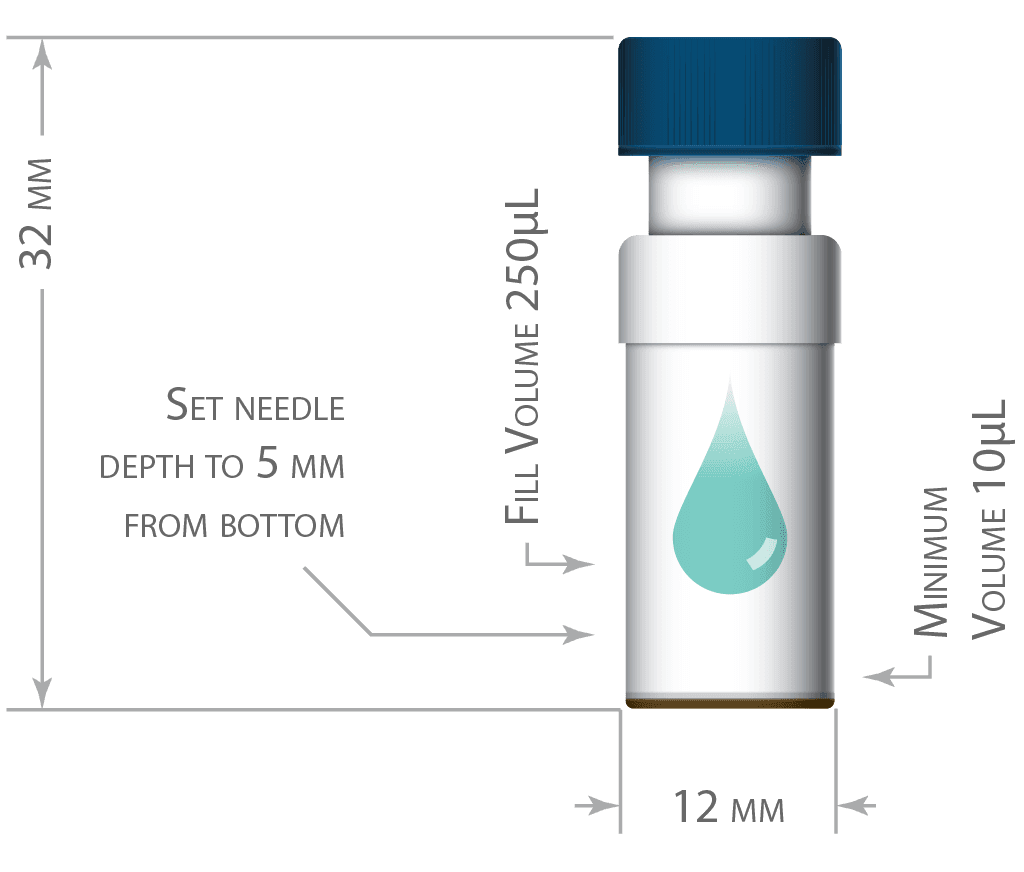

FV_nano_dims

nano|Filter Vial® specifications

Features & Benefits

Key Features

  • 10µL sample for 2μL injection

  • Available with pre-slit or non-slit caps

Replaces in the Lab

  • Centrifugation & Spin Filters

  • Small Volume Syringe Filters

  • Syringes

  • High Recovery Vials/Caps

  • Inserts with HPLC Vials/Caps

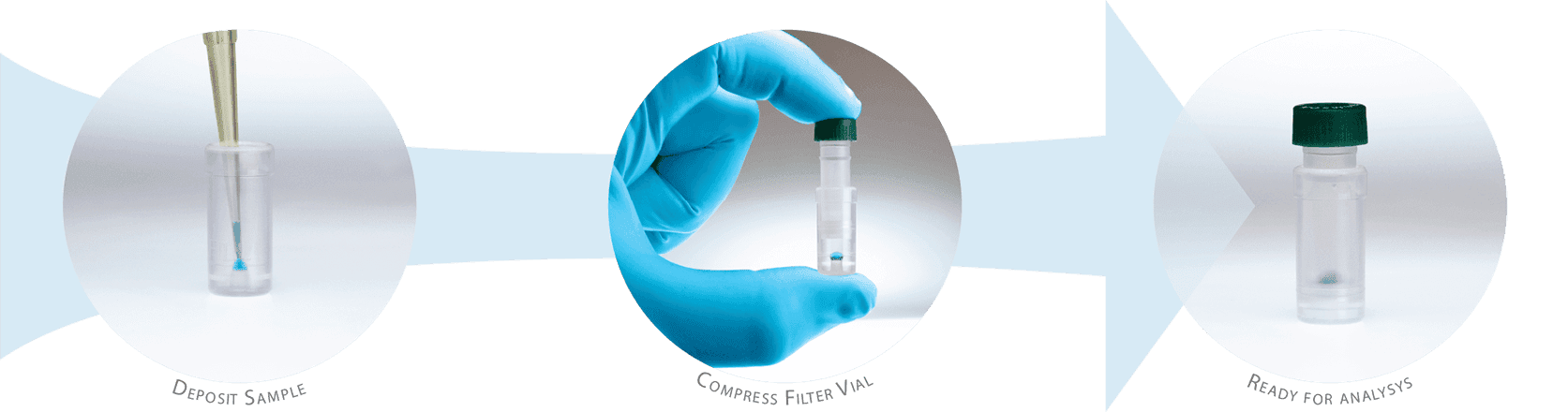

Fast to Use

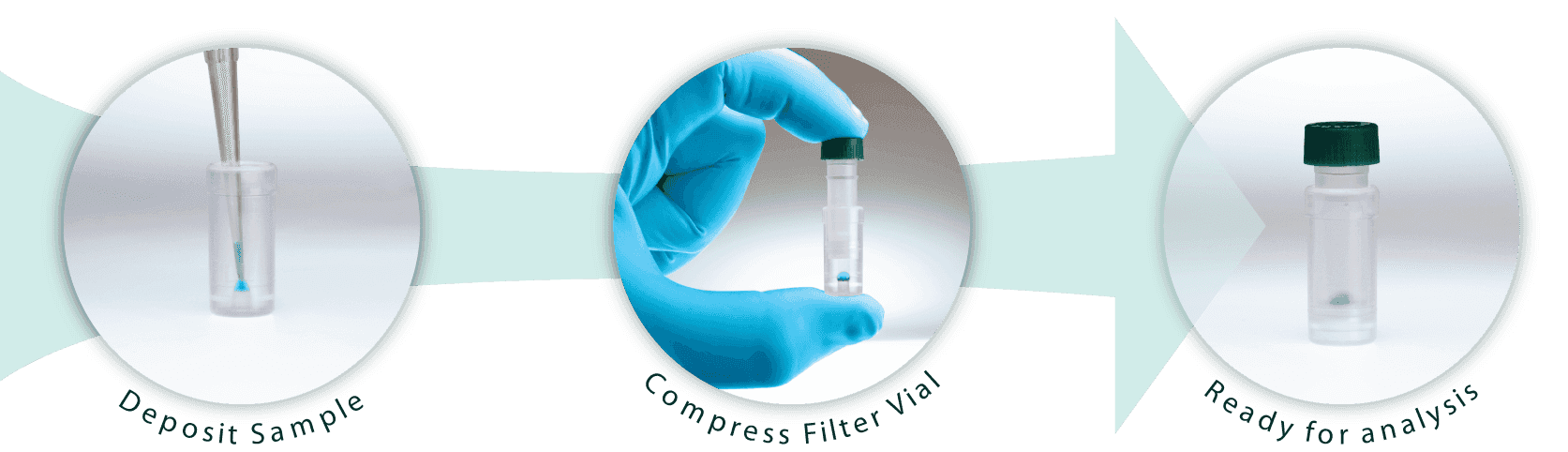

EASY AS 1, 2, ... DONE!
fv-123-nano

Visit Other Variants of Filter Vial

Standard|Filter Vial
eXtreme|FV®
Low Evap|Filter Vial
Accessories

mAb Data

Filter Vials improve data resoution and eliminate noise allowing you to better resolve small peaks

fv-nano-graph-1

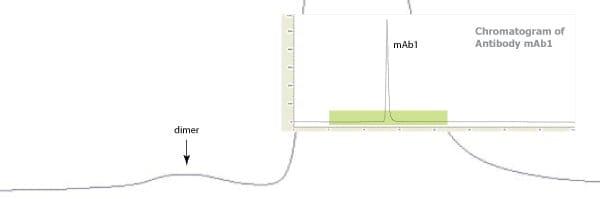

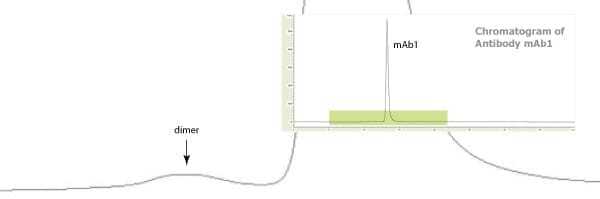

Antibody mAb1 Peak

Zoomed in version of the chromatogram of Antibody mAb1 to better visualize low abundance dimer.

fv-nano-graph-2

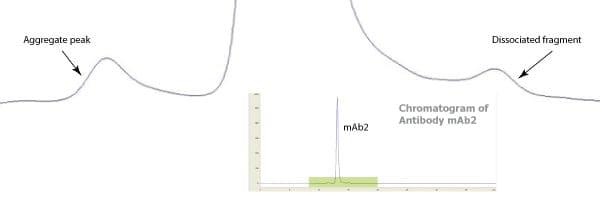

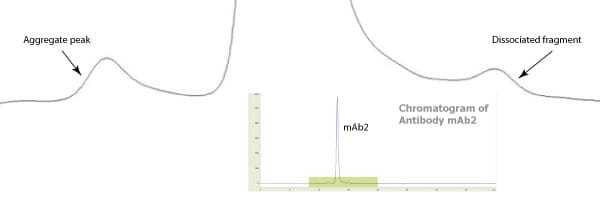

Antibody mAb2 Peak

Zoomed in version of the chromatogram of Antibody mAb2 to better visualize low abundance dimer.

Thomson Solutions At Work
Nationwide Technical Support

We’re here to help!

Thomson employs a nationwide team of expert technical support staff ready to tackle any questions you may have regarding our products.

Let's talk

nano|Filter Vial® Part Numbers

With Pre-Slit Septum

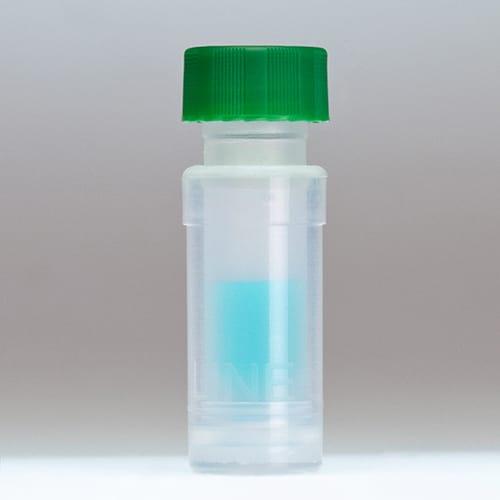

  • nano|Filter Vial® - PTFE 0.2µm
    non-sterile
    Pre-Slit Septum, Green Screw Cap
    For samples down to 10µL
    pn25530-200|200/case
    pn25530-500|500/case
    click for more details

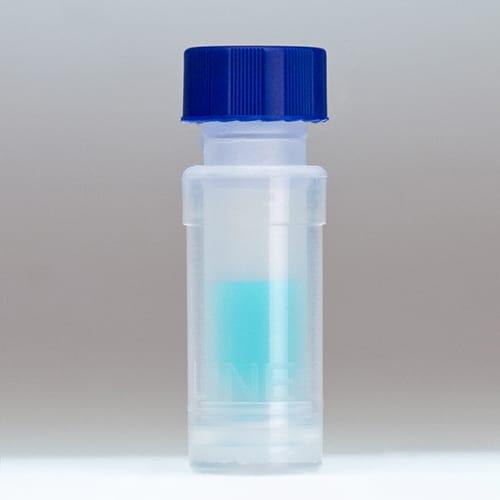

  • nano|Filter Vial® - PTFE 0.45µm
    non-sterile
    Pre-Slit Septum, Blue Screw Cap
    For samples down to 10µL
    pn25540-200|200/case
    pn25540-500|500/case
    click for more details
  • nano|Filter Vial® - PVDF 0.2µm
    non-sterile
    Pre-Slit Septum, Red Screw Cap
    For samples down to 10µL
    pn25531-200|200/case
    pn25531-500|500/case
    click for more details

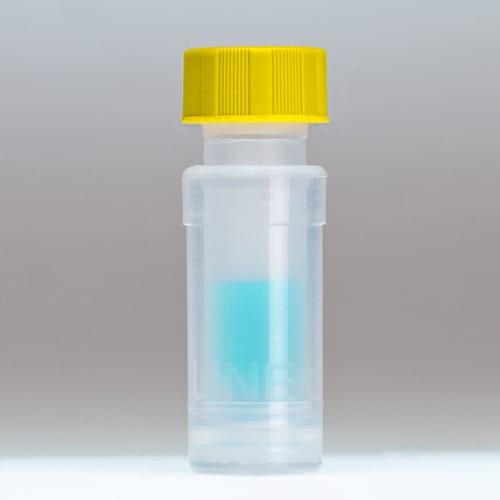

  • nano|Filter Vial® - PVDF 0.45µm
    non-sterile
    Pre-Slit Septum, Yellow Screw Cap
    For samples down to 10µL
    pn25541-200|200/case
    pn25541-500|500/case
    click for more details

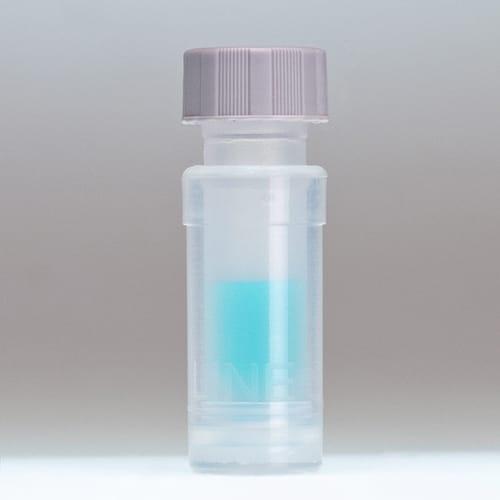

  • nano|Filter Vial® - PES 0.2µm
    non-sterile
    Pre-Slit Septum, Grey Screw Cap
    For samples down to 10µL
    pn25535-200|200/case
    pn25535-500|500/case
    click for more details
  • nano|Filter Vial® - Nylon 0.2µm
    non-sterile
    Pre-Slit Septum, Black Screw Cap
    For samples down to 10µL
    pn25538-200|200/case
    pn25538-500|500/case
    click for more details

nano|Filter Vial® Part Numbers

With Non-Slit Septum
  • nano|Filter Vial® - PTFE 0.2µm
    non-sterile
    Non-Slit Septum, Green Screw Cap
    For samples down to 10µL
    pn15530-200|200/case
    pn15530-500|500/case
    click for more details
  • nano|Filter Vial® - PTFE 0.45µm
    non-sterile
    Non-Slit Septum, Blue Screw Cap
    For samples down to 10µL
    pn15540-200|200/case
    pn15540-500|500/case
    click for more details
  • nano|Filter Vial® - PVDF 0.2µm
    non-sterile
    Non-Slit Septum, Red Screw Cap
    For samples down to 10µL
    pn15531-200|200/case
    pn15531-500|500/case
    click for more details
  • nano|Filter Vial® - PVDF 0.45µm
    non-sterile
    Non-Slit Septum, Yellow Screw Cap
    For samples down to 10µL
    pn15541-200|200/case
    pn15541-500|500/case
    click for more details
  • nano|Filter Vial® - PES 0.2µm
    non-sterile
    Non-Slit Septum, Grey Screw Cap
    For samples down to 10µL
    pn15535-200|200/case
    pn15535-500|500/case
    click for more details
  • nano|Filter Vial® - Nylon 0.2µm
    non-sterile
    Non-Slit Septum, Black Screw Cap
    For samples down to 10µL
    pn15538-200|200/case
    pn15538-500|500/case
    click for more details
  • nano|Filter Vial® - PTFE 0.2µm
    non-sterile
    Non-Slit PTFE|SIL|PTFE Septum, Green Screw Cap
    For samples down to 10µL
    pn14930|100/case
    click for more details

Filter Vial Accessory Part Numbers

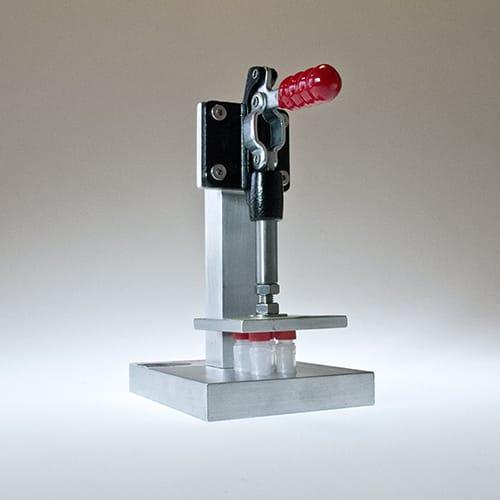

  • Toggle Press
    non-sterile
    5 Position for Autosampler Ready Filter Vials
    Use for High Solid Content & Very Viscous Liquid Samples
    pn35005|1/case
    click for more details

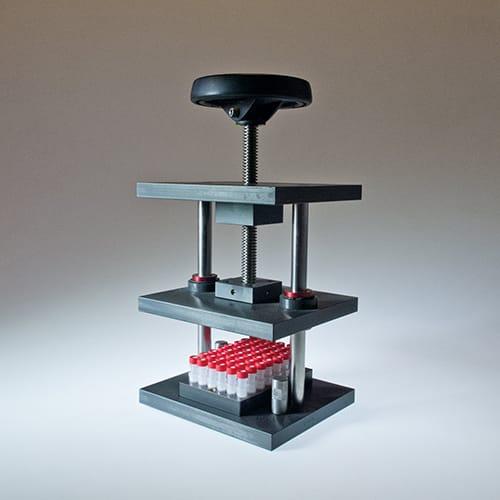

  • Multi-Use Press
    non-sterile
    48 Position for Autosampler Ready Filter Vials
    Use for High Solid Content & Very Viscous Liquid Samples
    pn35015|1/case
    click for more details
